Brand：pelco
Model:FTV10D1S1FC

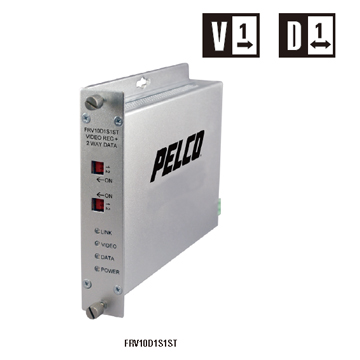

FTV10D1S1FC Pelco Fiber Transmitter and Receiver
SINGLE-CHANNEL DIGITALLY ENCODED VIDEO WITH BIDIRECTIONAL DATA
Product Features
? 10-Bit Digitally Encoded Video for High-Quality Video Transmissionover a Single Fiber
? Bidirectional Data Channel that Supports RS-232, RS-422, RS-485(2-wire/4-wire), Manchester, Bi-Phase, and Coaxitron®
Communication
? Supports Pelco Coaxitron “Up-the-Coax” Control Signals for aDistance up to 48 km (30 mi)
? Multimode Fiber Support for Distances up to 3 km (2 mi)
? Single-Mode Fiber Support for Distances up to 69 km (43 mi)
? Exceeds All Requirements for RS-250C Short-Haul Transmission
? Laser Diode for Transmission of Optical Signals
? Compatible with NTSC, PAL, and SECAM Video Standards
? Designed to Meet NEMA TS-1/TS-2 and Caltrans Traffic SignalControl Equipment Environmental Standards
? Stand-Alone and Rack-Mountable Modular Design
? LED Status Indicators for Monitoring All Critical Operating Parameters
Available in multimode and single-mode versions, the
FTV10D1/FRV10D1 fiber transmitter and receiver allow
transmission of one unidirectional composite video channel and one
bidirectional data channel over one optical fiber. In addition, the
“up-the-coax” technology allows Coaxitron® pan/tilt/zoom (PTZ)
control data to be transmitted the full distance of the fiber (up to
48 km for single-mode fiber). When using single-mode fiber, the
FTV10D1 transmitter and the FRV10D1 receiver offer an optical
power budget of 23 dB.
The FTV10D1 transmitter and the FRV10D1 receiver are compatible
with each other and other fiber models. The FRV10D1 receiver is
also backward compatible with the FSV10D1 transmitter.
The FTV10D1/FRV10D1 plug-and-play design ensures ease of
installation by requiring no electrical or optical adjustments. Modular
in design, FTV10D1 and FRV10D1 units can be rack-mounted using
the EURACK/USRACK chassis, or stand-alone modules can be placed
on a desktop or mounted to a wall (wall mount kit not required).
For stand-alone and wall mount installations, external power is
required for the FTV10D1/FRV10D1 units. The units can be powered
with the recommended FEXTPS fiber external power supply.

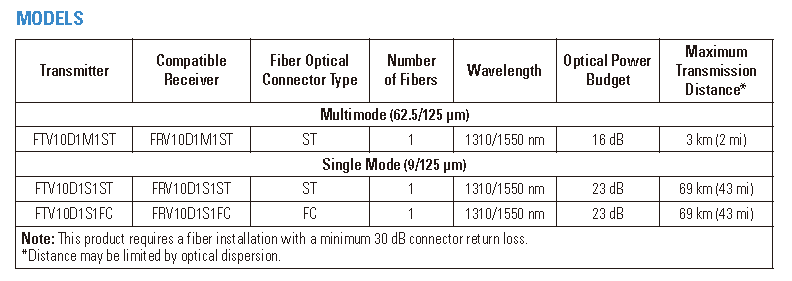

MODELS
Multimode (62.5/125 μm)
FTV10D1M1ST FRV10D1M1ST ST 1 1310/1550 nm 16 dB 3 km (2 mi)
Single Mode (9/125 μm)
FTV10D1S1ST FRV10D1S1ST ST 1 1310/1550 nm 23 dB 69 km (43 mi)
FTV10D1S1FC FRV10D1S1FC FC 1 1310/1550 nm 23 dB 69 km (43 mi)
Note: This product requires a fiber installation with a minimum 30 dB connector return loss.
*Distance may be limited by optical dispersion.
VIDEO
Video Input 1.0 Vp-p, 75 ohms
Overload >1.5 Vp-p
Bandwidth 5 Hz to 10 MHz
Differential Gain <2%
Differential Phase <0.7°
Tilt <1%
Signal-to-Noise Ratio 67 dB at maximum optical loss budget
Max. Coaxial Cable (RG59) 100 m (300 ft) camera to fiber optic module to
maintain 6 Mhz bandwidth
DATA
Interface RS-232, RS-422, RS-485 (2- or 4-wire), and
UTC (up-the-coax)
Rate DC-115 Kbps (NRZ)
ELECTRICAL
Wavelength 1310/1550 nm, multimode and singlemode
Power
Surface Mount 8 to 15 VDC at 2 W
Rack Mount Provided by rack
Number of Fibers 1
Optical Emitter Laser diode
LED Indicators Link, Video, Data
MECHANICAL
Connectors
Optical ST or FC
Power Terminal block
Video BNC (gold-plated center pin)
Data Terminal block
Number of Rack Slots 1
GENERAL
Dimensions 15.00 × 13.20 × 2.75 cm
(5.90" L × 5.20" W × 1.10" H)
MTBF >100,000 hours
Operating Temperature –40° to 75°C (–40° to 167°F)
Storage Temperature –40° to 85°C (–40° to 185°F)
Relative Humidity 0% to 95%, noncondensing
Unit Weight 0.7 kg (1.5 lb)
Shipping Weight 0.9 kg (2.0 lb)
CERTIFICATIONS/RATINGS
? CE, Class A
? FCC, Class A
? UL/cUL Listed
? C-Tick
? Designed to meet NEMA TS 1/TS 2 and Caltrans traffic signal control
equipment environmental standards
RECOMMENDED ACCESSORIES
EURACK 4 RU rack accessory with European power
supply (includes EU, UK, and AUS power line
cords)
USRACK 4 RU rack accessory with North American
power supply
FEXTPS Fiber External Power Supply with multiple
plug adaptors (North American, Australian,
United Kingdom, and European); 100 to
240 VAC, 50 to 60 Hz input, 9 VDC output
